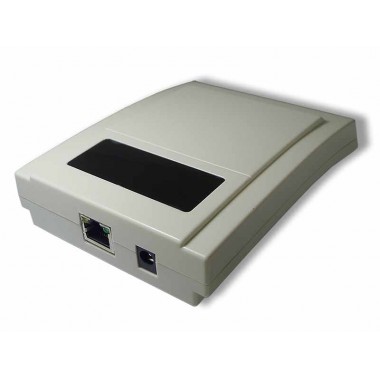

MR730 series desktop contactless IC card reader/writer is base on NXP series RF chip. The communication port is Ethernet. The reader fully supports the IC card according to ISO14443 and ISO15693 standard, especially completely supports ISO14443-4 contactless CPU card. The reader builds in SAM slot, and supports SAM according to ISO7816 (Max. 115200bps).
- Main Characteristics
- • Ethernet interface
- • High speed MCU and advantage firmware provide very high card process speed
- • Full function PC software
- Technical parameters
- • PCD: NXP MF RC500, MF RC531, CL RC632, SL RC400
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A, ISO14443B, ISO15693
- • Operating distance: 80mm (MIFARE One, typical)
- • SAM slot: 1 slot, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps)
- • Interface: Ethernet RJ45
- • Baud rate: 9600 ~ 115200 BPS
- • Power supply: AC adaptor DC5V
- • Power consumption: 1.5W
- • Dimension: 141mm * 100mm * 31mm
- • Weight: about 100g
- • Operating temperature: -25 ~ +85 ? (-77 ~ +185°F)
- • Storage temperature: -40 ~ +125 ? (-104 ~ +257°F)
- • PC software: TransWin
- • SDK: Base on Windows, free
- • Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
- • ISP: Terms
- • RoHS: By order
