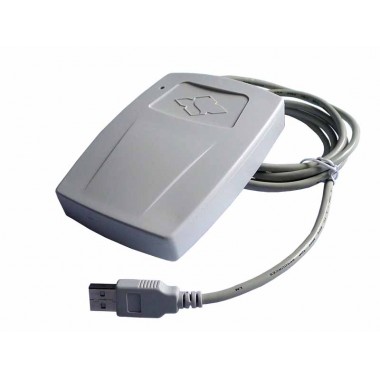

MR811 series desktop contactless IC card reader/writer is based on NXP series RF chip with high performance ARM7 MCU. The communication is according to USB PC/SC standard. The reader fully supports the IC card according to ISO14443 standard, especially completely supports ISO14443-4 contactless CPU card.
The reader builds in 2 SAM slots, and fully supports SAM according to ISO7816.
- Main Characteristics
- • True USB PC/SC interface, compatible with many PC/SC readers in the market
- • High speed ARM7 MCU and advantage firmware provide very high card process speed
- • RF interface and protocol process with EMV2010 LEVEL 1 certification ability
- Technical parameters
- • PCD: NXP MF RC531
- • Working frequency: 13.56MHz
- • RF standard: ISO14443A, ISO14443B
- • Operating distance: 100mm (MIFARE One, typical)
- • SAM slot: 2 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 230400bps)
- • Display: 1 tri-color LED
- • Buzzer: Build in
- • Data FLASH: 4 Mbytes
- • Interface: USB PC/SC standard
- • Power supply: DC5V ± 10%
- • Power consumption: 0.9W
- • Dimension: 123mm * 88mm * 25mm
- • Weight: About 100g
- • Operating temperature: -25 ~ +85 ? (-77 ~ +185°F)
- • Storage temperature: -40 ~ +125 ? (-104 ~ +257°F)
- • PC software: PCSC Communication Tool
- • SDK: Base on Windows, free
- • Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
- • ISP: Terms
- • RoHS: Compliant
